spryTrack 300 Optical Positioning System Product Overview

Model: spryTrack 300 Optical Positioning System

The spryTrack 300 Optical Positioning System  is a real-time optical tracking system that enables passive and active marker tracking with high accuracy.Equipped with two cameras, it uses advanced triangulation to delive precise 6DoF pose tracking (x, y, z, α, β, γ)and it is available in two models, IR and RGB.Both spryTrack™ 300 IR and RGB have the ability to provide 3D positions of fiducials and/or pose of markers,as well as retrieve structured-light images for den

0755-22934005

hongqi@thingstest.com

+852 6229 0873

In Stock Same-day Shipping

spryTrack 300 Optical Positioning System Detailed Introduction:

The spryTrack 300 Optical Positioning System  is a real-time optical tracking system that enables passive and active marker tracking with high accuracy.

Equipped with two cameras, it uses advanced triangulation to delive precise 6DoF pose tracking (x, y, z, α, β, γ)and it is available in two models, IR and RGB.

Both spryTrack™ 300 IR and RGB have the ability to provide 3D positions of fiducials and/or pose of markers,as well as retrieve structured-light images for dense 3D reconstruction.

spryTrack 300 Optical Positioning SystemMain features：

    • Two models: IR and RGB (for acquiring color images) tracking camera
    • Sub-millimetric accuracy: 0.14 mm RMS up to 1.4 m
    • Three alternative acquisition modes: fiducial tracking at 54 Hz, dense 3D reconstruction up to 54 Hz, and visible-color image acquisition
    • Simple plug-and-play integration via USB Type-C: for quick setup and ease of use

Ecosystem

   Atracsys offers a complete ecosystem of solutions, designed to enable higher accuracy and streamline integration: cameras, markers, verification and calibration tools, SDK and a dedicated customer service

SDK

   Atracsys SDK provide access to data across all processing stages—from raw images and 3D fiducial positions to full marker pose—along with multi-level fault checking for real-time error diagnostics at every step

Support

   Tailored evaluations, R&D consultancies and dedicated services to fast-track your development and deployment timeline, step by step

spryTrack 300 Optical Positioning System Specifications：

Size & Weight356.5 mm x 60.5 mm x 55 mm1073 g

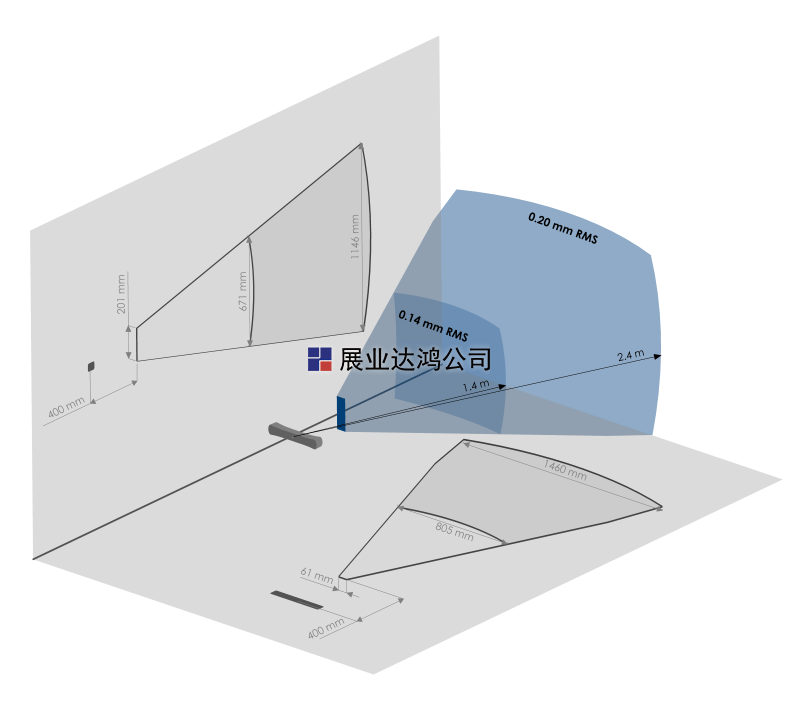

Accuracy 10.14 mm RMS up to 1.4 m0.20 mm RMS up to 2.4 m
Working volumeStarts at 400 mm
Measurement rate 254 Hz
Latency 3~25 ms
Tracking specsHybrid tracking: reflective spheres / disks, active wired and wirelessAcquisition: fiducial tracking at 54 Hz or Dense 3D reconstruction up to 54 Hz or alternance of both modes defined by userMax. simultaneous markers4 : 16 markers in USB, 4 markers in BTLEMax. fiducials per marker: 6
CertificationsIEC 60601-1 :2005 IEC 60601-1 :2005/AMD1 :2012 IEC 60601-1 :2005/AMD2 :2020 IEC 60601-1-2 :2007 IEC 60601-1-2 :2014 IEC 60601-1-2 :2014/AMD1 :2020 IEC 60825-1:2014 CB certificate available here
  • (1) Based on a single fiducial stepped uniformly throughout the measurement working volume at 20 °C.
  • (2) Depending on user’s computer, USB connection and numbers of blobs detected in the pictures.
  • (3) Tested with a USB connection and in the case of typical IR images with 4 markers including 4 fiducials in the center of the Working Volume and without interference.
  • (4) Full speed is preserved for 4 markers of 4 fiducials. (i.e. 16 fiducials).

Due to continuous improvements, Atracsys reserves the right to modify the information or specifications without prior notice.
