spryTrack 180 Optical Positioning System Detailed Introduction:
spryTrack 180 Optical Positioning System can be evaluated in a wireless configuration using a Bluetooth communication interface and an external battery pack. These wireless capabilities are available as engineering samples, enabling OEM partners to explore cable-free operation and provide feedback to help tailor ongoing development to best match their system requirements.
spryTrack 180 Optical Positioning System Unprecedented compactness:
- slightly longer than a pencil, suitable for small space tracking
- Sub-millimetric accuracy: 0.19 mm RMS up to 1.4 m (0.5 m³)
- Adaptable: features a USB 3.0 Type C connection (for power and/or data) as well as a Bluetooth one (for data only)
- Wireless (engineering sample): Bluetooth and optional external battery pack, enabling evaluation of cable-free operation in mobile and space‑constrained workflows.

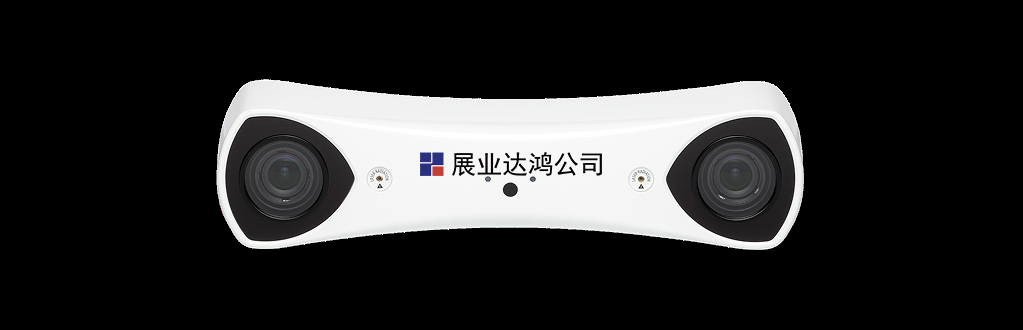

spryTrack 180 Optical Positioning System is a compact and lightweight optical tracking system designed for OEMs developing surgical navigation solutions that must operate reliably in space‑constrained and dynamic clinical environments.
Its design prioritizes flexibility, mobility, and ease of integration, allowing navigation systems to fit a wide range of workflows, from traditional ORs to table‑mounted and imaging‑centric setups.
Ecosystem
Atracsys offers a complete ecosystem of solutions, designed to enable higher accuracy and streamline integration: cameras, markers, verification and calibration tools, SDK and a dedicated customer service
SDK
Atracsys SDK provide access to data across all processing stages—from raw images and 3D fiducial positions to full marker pose—along with multi-level fault checking for real-time error diagnostics at every step
Support
Tailored evaluations, R&D consultancies and dedicated services to fast-track your development and deployment timeline, step by step
spryTrack 180 Optical Positioning System Specifications：
| Size & Weight | 236.3 mm x 60.3 mm x 50.5 mm692 g |
|---|---|

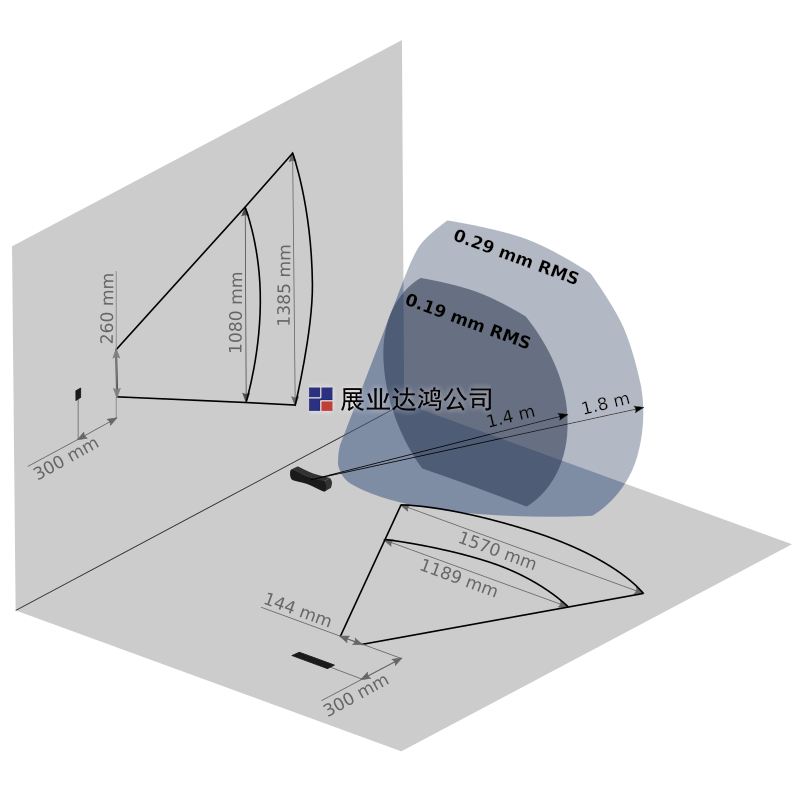

| Accuracy 1 | 0.19 mm RMS up to 1.4 m0.29 mm RMS up to 1.8 m |
| Working volume | Starts at 300 mm |
| Measurement rate 2 | 54 Hz |
| Latency 3 | ~25 ms |
| Tracking specs | Hybrid tracking: reflective spheres / disks, active wired and wirelessAcquisition: fiducial tracking at 54 HzMax. simultaneous markers4 : 16 markers in USB, 4 markers in BTLEMax. fiducials per marker: 6 |
| Certifications | IEC 60601-1 :2005 IEC 60601-1 :2005/AMD1 :2012 IEC 60601-1 :2005/AMD2 :2020 IEC 60601-1-2 :2007 IEC 60601-1-2 :2014 IEC 60601-1-2 :2014/AMD1 :2020 IEC 60825-1:2014 CB certificate |
- (1) Based on a single fiducial stepped uniformly throughout the measurement working volume at 20 °C.
- (2) Depending on user’s computer, USB connection and numbers of blobs detected in the pictures.
- (3) Tested with a USB connection and in the case of typical IR images with 4 markers including 4 fiducials in the center of the Working Volume and without interference.
- (4) Full speed is preserved for 4 markers of 4 fiducials. (i.e. 16 fiducials).
Due to continuous improvements, Atracsys reserves the right to modify the information or specifications without prior notice.
