fusionTrack 500 Optical Positioning System Detailed Introduction:
fusionTrack 500 Optical Positioning System is Atracsys optical tracking system offering ultra-low latency, cutting-edge precision and a very high measurement rate of 335 Hz in large working volume. It excels in demanding robotics applications requiring cutting-edge accuracy, speed and exceptional reliability.
The fusionTrack 500 Optical Positioning System is a real-time optical tracking system that enables passive and active marker tracking with exceptional accuracy.
Equipped with two cameras, it uses advanced triangulation to deliver precise 6DoF pose tracking (x, y, z, α, β, γ) at a true, non-interpolated rate of 335 Hz.
fusionTrack 500 Optical Positioning System Main features：
- Real-time high-speed of 335 Hz and low latency (4 ms): unlock applications never imagined before
- High-precision: 0.08 mm RMS up to 2.0 m
- Ethernet connection for both data and power (PoE+)
- Supports both active and passive marker technologies
- Multi-level fault checking: keep full control with a real-time access to several levels of error information
Ecosystem
Atracsys offers a complete ecosystem of solutions, designed to enable higher accuracy and streamline integration: cameras, markers, verification and calibration tools, SDK and a dedicated customer service
SDK
Atracsys SDK provide access to data across all processing stages—from raw images and 3D fiducial positions to full marker pose—along with multi-level fault checking for real-time error diagnostics at every step
Support
Tailored evaluations, R&D consultancies and dedicated services to fast-track your development and deployment timeline, step by step
fusionTrack 500 Optical Positioning System Specifications：
| Size & Weight | 528 mm x 80 mm x 88 mm2.3 kg |
|---|---|

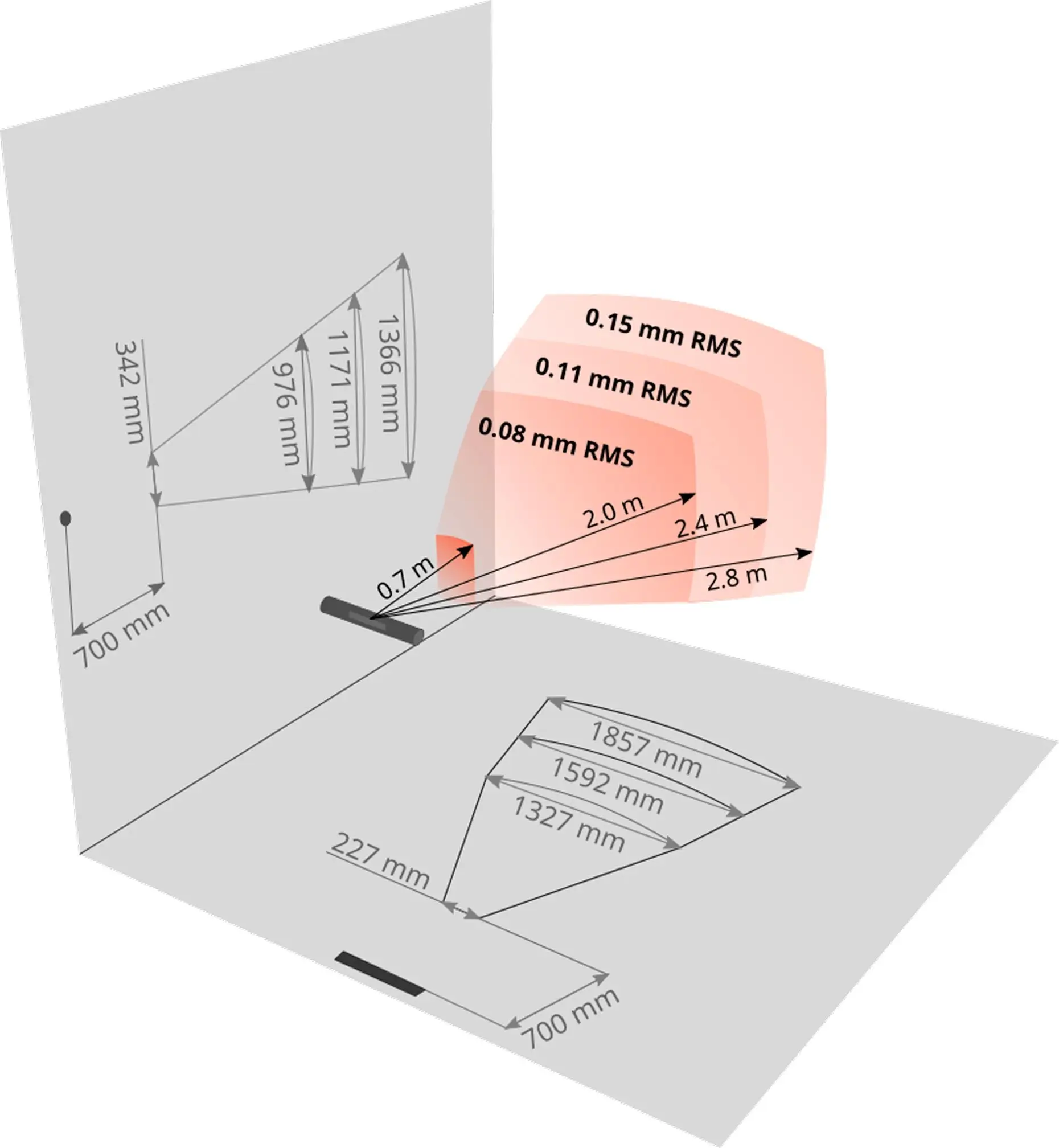

| Accuracy 1 | 0.08 mm RMS up to 2.0 m0.11 mm RMS up to 2.4 m0.15 mm RMS up to 2.8 m |
| Working volume | Starts at 700 mm |
| Measurement rate 2 | 335 Hz |
| Latency | ~4 ms |
| Tracking specs | Hybrid tracking: reflective spheres / disks, active wired and wirelessAcquisition: parallel (all fiducials at the same time)Max. simultaneous markers3 : 16Max. fiducials per marker: 6 |
| Certifications | IEC 60601-1:2005 IEC 60601-1:2005/AMD1:2012 IEC 60601-1-2:2014 CB certificate available here |
- (1) Based on a single fiducial stepped uniformly throughout the measurement volume at 20°C.
- (2) Depending on user’s computer, network connection and numbers of blobs detected in the pictures.
- (3) Full speed is preserved for 4 markers of 4 fiducials. (i.e. 16 fiducials).
Due to continuous improvements, Atracsys reserves the right to modify the information or specifications without prior notice.
