QUART DVTap IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom

QUART DVTap IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom Detailed Introduction:

QUART DVTap IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom

The QUART DVTap phantom is designed to be used as a universal tool for 3D imaging equipment including CT applications.

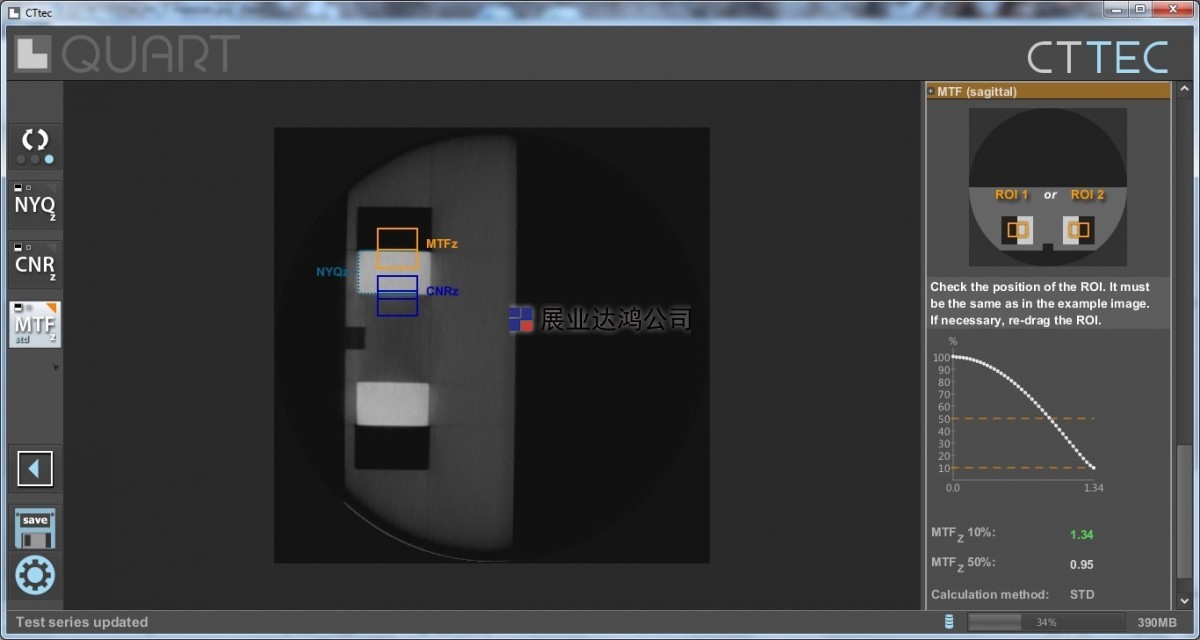

The phantom (combined with QUART's CTtec software) has been endorsed by IAEA, EFOMP and ESTRO as a comprehensive solution for time-efficient CT and CBCT QA procedures.

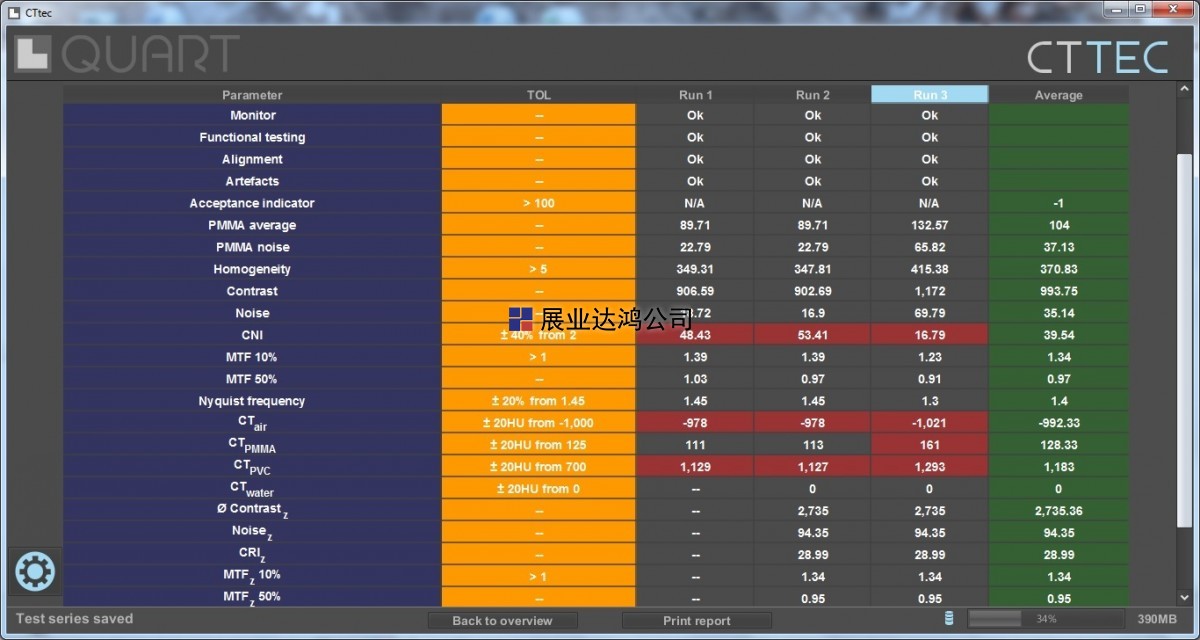

Only one exposure required to create 3D data set containing all required parameters to evaluate image quality. Automated evaluation through unique QUART QA/QC software.Phantom can be applied for field sizes from 4x4cm to large fields-of-view (FOV). A universal holder or customised phantom holders available for easy and reproducible positioning.

QUART DVTap IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom Technical specifications:

• SPATIAL RESOLUTION: Line spread function
• RESOLUTION: Z-Resolution
• STANDARD TEST OBJECTS: PMMA / Air / PVC
• MATERIAL EQUIVALENTS: Free Air / Soft tissue / Bone
• POSTIONING TOOLS: Linear (top side) / Selective markers
• SIZE: Ø 16 cm, height: 15 cm
• SCATTER RADIATION MODULES: 1x 6 cm / 1x 5 cm

QUART DVTap IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom Parameter:

• Nyquist Frequency (NF)
• Contrast-to-Noise Ratio (CNR)
• Homogeneity / Image Uniformity
• Z-Resolution

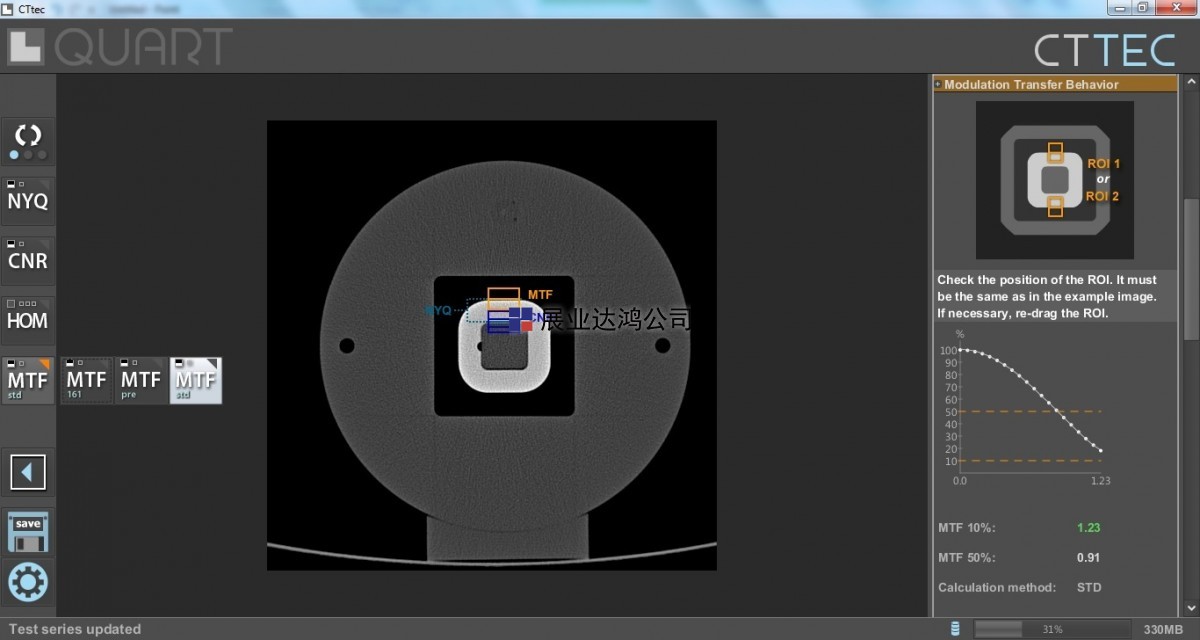

• Modulation Transfer Function
• Artefacts, Image Flaws
• Figure of Merit
