DSA QA Test Phantom
DSA QA Test Phantom Product Overview
Model: DSA QA Test Phantom
The QUART DSA QA Test Phantom is designed for maximum precision in QA/QC of Digital Subtraction Angiography equipment.It is a Type B sliding design which maximises QC performance in subtraction angiography applications. The DSA QA Test Phantom complies with DIN 6868-4, DIN 6868-8, DIN 6868-150 and IEC 61223-3-3.DSA QA Test Phantom Parameters:Dynamic RangeContrast SensitivityArtefactsAttenuation Compression (Logarithmic Co
0755-22934005
hongqi@thingstest.com
+852 6229 0873
DSA QA Test Phantom Detailed Introduction:

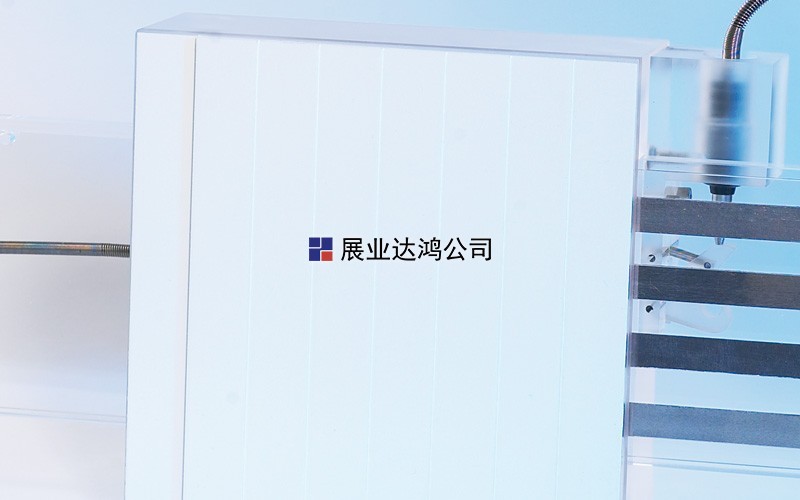

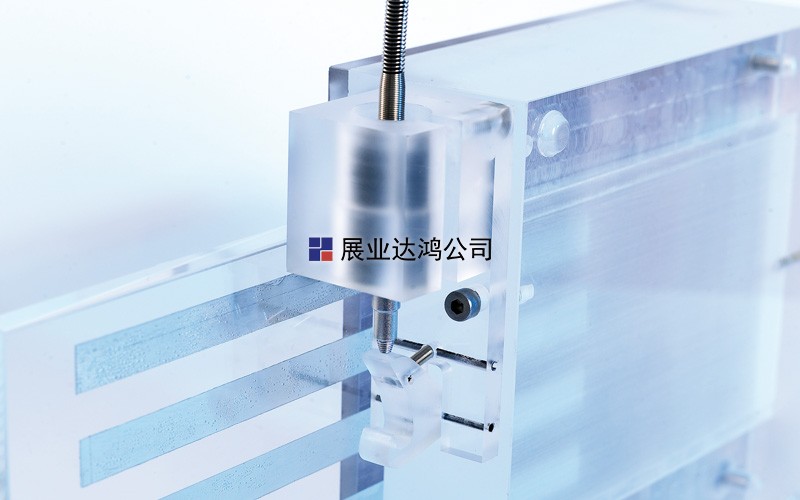

The QUART DSA QA Test Phantom is designed for maximum precision in QA/QC of Digital Subtraction Angiography equipment.It is a Type B sliding design which maximises QC performance in subtraction angiography applications.
The DSA QA Test Phantom complies with DIN 6868-4, DIN 6868-8, DIN 6868-150 and IEC 61223-3-3.
DSA QA Test Phantom Parameters:
- Dynamic Range
- Contrast Sensitivity
- Artefacts
- Attenuation Compression (Logarithmic Compression)
- Visual Spatial Resolution (in combination with Type 38 Line Pair Test Pattern)
- Test Pattern properties: 45° / 0.05 mm Pb / 20 line pair groups / 0.6 – 5.0 Lp/mm
DSA QA Test Phantom Technical specifications:
- PHANTOM MAIN BODY: PMMA
- SLIDER: PMMA
- VESSEL SIMULATION: 4 aluminium strips
- Distance: 10 mm between strips
- Purity: 99.5% (guaranteed)
- Thickness: 0.05 / 0.1 / 0.2 / 0.4 mm
- Strip width: 10 mm
- TISSUE SIMULATION: Step wedge
- 7 copper steps
- Steps 0.2 – 1.4 mm
- LOGARITHMIC COMPRESSION: 1 additional copper step
- Height: 0.2 mm
- REMOTE : Pneumatic Control, Length 7 m
